Yantai Rongfan Electronic Technology Co., Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | RFan |
| Certification : | UL.CE.TUV.ROSH |
| Price : | 0.02-0.9 |
| Delivery Time : | 5-7days |
| Supply Ability : | 1KKpcs/month |
| Model Number : | 1032 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Description

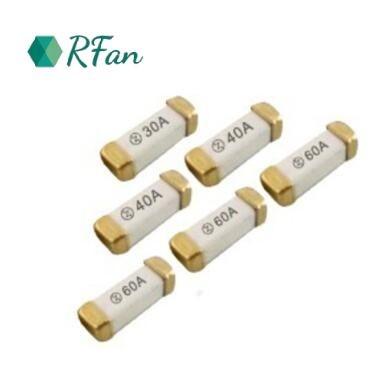

R1032 Series fast-acting square Surface Mount fuses are ceramic tube/ end cap constructions,RoHS compliant,HalogenFree and lead-free, with U.S.(UL/CSA)safety agency approvals.Provide board level primary and secondary circuit protection in a wide variety of applications,end caps are available in copperor silver plated
Features
·Lead-Free and RoHS compliant
·Inrush withstand capability
·Wide range of current rating
·Wide range of current rating
·Excellent environmental integrity
·Operating temperaturerange-55℃ to+125℃(consider de-rating)
Applications
·LED driver ·LCD/LED monitor/TV/backlight inverter
·Notebook/Laptops ·Networking device
·PC computer ·Telecom device
·Office electronic equipment ·Industrial equipment
·Digital camera ·Powersupply
| Catalog Number | Ampere Rating(A) | Voltage Raling(V) | Interrupting Rating |
R1032.* R1032E.** R1032T.*** | 0.050 | 32V 63V 72V 100V 125V 250V 350V 400V | 1000A@32V 150A@63V72100V125V 50A@350V/400V |
| 0.062 | |||
| 0.080 | |||
| 0.100 | |||
| 0.125 | |||
| 0.200 | |||
| 0.250 | |||
| 0.300 | |||
| 0.375 | |||
| 0.400 | |||
| 0.500 | |||
| 0.600 | |||
| 0.630 | |||
| 0.700 | |||
| 0.750 | |||
| 0.800 | |||
| 1 | |||
| 1.25 | |||
| 1.5 | |||
| 2 |
| Catalog Number | Ampere Rating(A) | Voltage Rating(V) | Interrupting Rating |
R1032.*** R1032E.* R1032T.*** | 2.5 | 32V 63V 72V 100V 125V 250V 350V 400V | 1000A@32V 150A@63V72/100V125V 50A@350V/400V |
| 3 | |||
| 3.15 | |||
| 3.5 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 6.3 | |||
| 7 | |||
| 7.5 | |||
| 8 | |||
| 10 | |||
| 12 | |||
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 40 南 |
Dimension (Unit:mm)
Packaging
2,000 pcs per reel
RFan, a brand from China, is a leading manufacturer of surface mount fuses that are UL, CE, TUV, and ROSH certified. Our SMD fuses are widely used in various industries, such as telecommunications, consumer electronics, medical equipment, and automotive electronics.
Our miniature fuses are designed to protect electronic circuits from overcurrents and short circuits. They are available in different power ratings such as 0.125W, 0.25W, 0.5W, 1W, and 2W, and are suitable for use in PCB mount applications. The mounting style is SMD, which makes it easy to install and remove.
Our SMD fuses are ideal for use in scenarios where space is limited. Their small size and high performance make them perfect for use in portable devices, such as smartphones, tablets, and laptops. They are also suitable for use in power supplies, LED lighting, and motor control circuits.
Our SMD fuses have a maximum fusing time that can be customized based on your needs. They also have an interrupting rating of 35A(1.25A~5A)/ 50A(250mA~1A), which ensures that the circuit is protected from damage in the event of a short circuit.
The minimum order quantity for our SMD fuses is 2000, and the price ranges from 0.02-0.9, depending on the power rating and quantity ordered. We have a supply ability of 1KKpcs/month, and we can deliver within 5-7 days.
If you need a reliable and high-quality SMD fuse for your electronic circuit, RFan is your best choice. Contact us today to place your order or for more information.
Our Surface Mount Fuse product has a team of expert technical support professionals who can assist you with any questions or issues you may have. We also offer a range of services to ensure that you get the most out of your product, such as:
Our goal is to provide you with the highest level of support and service possible to ensure that your Surface Mount Fuse product meets all of your needs and performs to your expectations.
|
|
