    JK-D Series Polymer PTC Resettable Fuse 1.75A For Battery Protection

    Ask Lasest Price
    Brand Name : RFan
    Model Number : JK-D175
    Certification : UL.TUV.ROHS
    Price : 0.02-0.5
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3KK/M
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    JK-D Series Polymer PTC Resettable Fuse 1.75A For Battery Protection

    Polymer PTC Resetable Fuse For Battery Protection JK-D Series 1.75A
    Features:
    Strap devices,Axial leaded
    Protection for NiCd/NiMH rechargesble battery packs,Li-ion/Polymer Li-ion battery
    Available in lead-free version
    Agency recognition:UL,CSA,TUV


    Product Dimensions:


    Typical Time-to-Trip Charts at 25℃

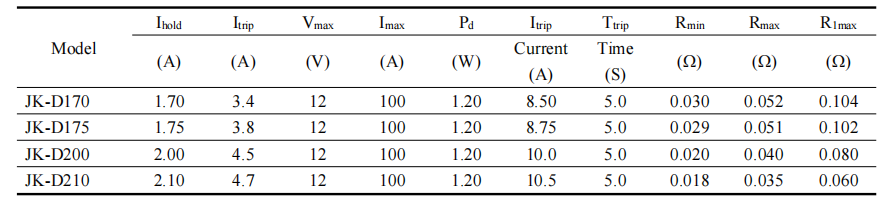

    Electrical Characteristic


    Electrical Specifications:
    Ihold=Hold current: maximum current device will not trip in 25℃ still air.
    Itrip= Trip current: minimum current device will always trip in 25℃ still air.
    Vmax=Maximum voltage device can withstand without damage at rated current(Imax).
    Imax=Maximum fault current device can withstand without damage at rated voltage(vmax).
    Pd max= Power dissipated when device is in the tripped state in 25℃ still air environment at rated voltage.
    Max Time-to-trip=Maximum time to trip(s) at assigned current.
    Rmin=Minimum device resistance prior to tripping at 25℃.
    Rmax=Maximum device resistance prior to tripping at 25℃.
    R1max=Maximum device resistance one hour after it is tripped at 25℃
