    JK60-200 60V 2A PPTC Resettable Fuse 48V Radial leaded Devices

    Ask Lasest Price
    Brand Name : RFan
    Model Number : JK30-600
    Certification : UL.TUV.ROHS
    Price : 0.03-0.5
    • Product Details
    • Company Profile

    JK60-200 60V 2A PPTC Resettable Fuse 48V Radial leaded Devices

    JK60-200 60V 2A Resettable PPTC Devices Polymer Positive Temperature Coefficient Fuses Use For 48V

    Polymer PTCResettableFuse
    JK30 Series
    Features:
     Radial leaded Devices
     Cured,flame retardant epoxy polymer insulating material meets UL94V-0
     Bulk packaging,or tape and reel available on mostmodels
     Agency recognition: UL,CSA,TUV
     Rohs compliant andlead-free

    ProductDimensions

    Unit :mm

    JK60 Series

    ModelDimensions(mm)Lead materialShape
    A(max)B(max)C(max)DE(min)Tinned metal(mm)Fig
    JK60-0055.59.53.05. 1±0.754.624 AWG/Φ0.51
    JK60-0105.59.53.05. 1±0.754.624 AWG/Φ0.51
    JK60-0177.412.73.05. 1±0.754.624 AWG/Φ0.51
    JK60-0207.412.73.05. 1±0.754.624 AWG/Φ0.51
    JK60-0257.412.73.05. 1±0.754.624 AWG/Φ0.51
    JK60-0307.413.03.05. 1±0.754.624 AWG/Φ0.51
    JK60-0407.816.23.05. 1±0.754.624 AWG/Φ0.51
    JK60-0507.816.23.05. 1±0.754.624 AWG/Φ0.51
    JK60-0659.717.83.05. 1±0.754.622 AWG/Φ0.51
    JK60-07510.418.43.05. 1±0.754.622 AWG/Φ0.51
    JK60-09011.718.43.05. 1±0.754.622 AWG/Φ0.81
    JK60-11013.018.03.05. 1±0.754.620 AWG/Φ0.82
    JK60-13514.519.63.05. 1±0.754.620 AWG/Φ0.82
    JK60-16016.321.33.05. 1±0.754.620 AWG/Φ0.82
    JK60-18517.822.93.05. 1±0.754.620 AWG/Φ0.82
    JK60-20017.822.93.05. 1±0.754.620 AWG/Φ0.82
    JK60-25021.326.43.010.2±0.754.620 AWG/Φ0.82
    JK60-30021.326.43.010.2±0.754.620 AWG/Φ0.82
    JK60-37528.533.53.010.2±0.754.620 AWG/Φ0.82
    JK60-50028.533.53.010.2±0.754.620 AWG/Φ0.82

    Note: Dimensions in the A, B, C are the maximum sizes, all typical values of D is at the tolerance of ± 0.75mm.

    Thermal Derating Chart-IH(A)(Just FYI)

    ModelMaximum ambient operating temperature (℃)
    -40℃-20℃0℃25℃30℃40℃50℃60℃70℃85℃
    JK60 series147%136%119%100%90%81%72%63%54%40%

    Electrical Characteristics

    Electrical Characteristics
    ModelIH(A)IT(A)VmaxImaxPdMaximum Time-to-TripResistance (Ω)
    V(DC)A(DC)WCurrent(A)Time(S)RminRmax
    JK60-0050.050.1560400.260.258.07.320
    JK60-0100.100.360400.380.55.02.57.5
    JK60-0170.170.3460400.480.855.025.21
    JK60-0200.20.460400.411.05.01.52.84
    JK60-0250.250.560400.451.255.01.01.95
    JK60-0300.300.660400.491.55.00.761.38
    JK60-0400.400.860400.562.05.00.450.88
    JK60-0500.501.060400.772.55.00.400.79
    JK60-0650.651.360400.883.255.00.310.50
    JK60-0750.751.560400.923.755.00.250.42
    JK60-0900.901.860400.994.55.00.200.33
    JK60-1101.102.260401.55.58.00.150.27
    JK60-1351.352.760401.76.758.00. 120.21
    JK60-1601.603.260401.98.08.00.090.16
    JK60-1851.853.760402. 19.258.00.080. 14
    JK60-2002.004.060402.310.08.00.070. 14
    JK60-2502.505.060402.512.58.00.050.10
    JK60-3003.006.060402.815.08.00.040.08
    JK60-3753.757.560403.218.7524.00.030.06
    JK60-5005.001060403.525.024.00.020.06

    Environmental Specifications

    TestConditionsResistance change
    Passive Aging+85℃ , 1000hours≤Rmax
    Humidity Aging+85℃ , 85%R.H. 1000hours≤Rmax
    Thermal Shock+125℃ to -55℃ , 10 Times≥Rmin
    SolventResistanceMIL-STD-202 ,Method 215FNo change
    VibrationMIL-STD-202 ,Method 201No change

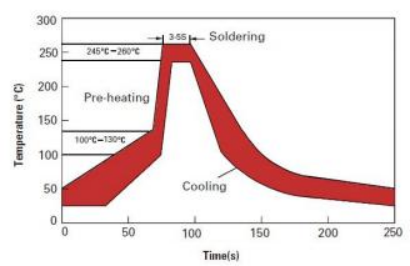

    Wave Soldering

    Soldering Temperature:245℃~260℃ Soldering Time:≤5sec


    Manual soldering

    Soldering Temperature:250℃~280℃ Soldering Time: ≤3sec

    Soldering Position: Resettable fuse lead and the distance fromthe bottom ≥ 6mm

    Packaging quantity
    JK60-005~JK60-1101000Pcs/Bag or 2000Pcs/Box
    JK60-135~JK60-200500 Pcs/Bag
    JK60-250~JK60-500200 Pcs/Bag

    JK60-200 60V 2A PPTC Resettable Fuse 48V Radial leaded Devices


    IH=Hold current:maximum current at which the device will not trip at 25℃still air.
    IT=Trip current:minimum current at which the device will nalways at 25℃still air.
    Vmax=Maximum voltage device can withstand without damage at rated current.
    Imax=Maximum fault current device can withstand tithout damage at rated voltage.
    Ttrip=Maximum time to trip(s) at assigned current.
    Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment.
    Rmin=Minimum device resistance at 25℃ prior to tripping.
    Rmax=Maximum device resistance at 25℃ prior to tripping.
