    Current Rating 3.0A Polyswitch Resettable Devices for Strap Battery

    Ask Lasest Price
    Brand Name : RFan
    Certification : UL.CE.TUV.ROHS
    Price : 0.02-0.5
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3KK/M
    Delivery Time : 5-7days
    Model Number : LR300
    • Product Details
    • Company Profile

    Current Rating 3.0A Polyswitch Resettable Devices for Strap Battery

    Current Rating 3.0A Polyswitch Resettable Devices Strap Battery Devices

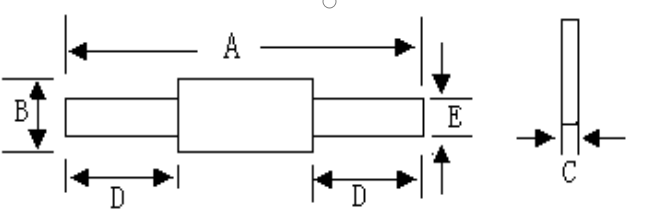

    Product Dimensions (mm)

    Part NoABCDE
    MinMax.MinMax.Min.Max.Min.Max.Min.Max.
    LR30020.523.54.65.60.41.03.56.03.84.2

    PERFORMANCE RANTINGS

    Part NoIholdItripVmaxImaxPdRminRmaxR1maxMaximum Time
    to Trip
    AAVAWΩΩΩCurrenttime
    LR3003.06.0161001.60.0150.0300.06015A5S

    IH: Hold current: maximum current device will pass without interruption in 25℃ still air unless otherwise specified .

    IT: Trip current: minimum current at which the device will be tripping in 25℃ .

    IMAX: Maximum current device can withstand without damage at rated voltage.

    VMAX: Maximum voltage device can withstand without damage at rated current.

    Pd: Typical Power dissipation: Typical amount of dissipated by the device when in state air environment.

    RMIN: Minimum resistance of device as 25℃ prior to tripping..

    RMAX: Maximum resistance of device at 25℃ prior to tripping..

    R1max:The maximum resistance of the device at 25℃ 1 hour after being tripped.

    Thermal Derating Chart-IH(A)

    Part

    NO

    Maximum ambient operating temperatures()
    -40-2002025405060708085
    LR3005.004.293.783.203.002.292.041.701.351.000.78
