    0603 60Ω Ceramic PTC Chip Thermistor Resettable For Overcurrent Protection

    0603 60Ω Chip Ceramic PTC Thermistor Resettable PTC Thermistor For Overcurrent Protection And Current Limiting Resistor

    Overcurrent Protection device with resettable function suitable for current limiting resistor.
    This product is a chip type PTCthermistor for overcurrent protection that is suitable for the following.
    · Countermeasure for short circuit testing · Current limiting resistor.

    Features


    1. Rapid operation to protect the circuit in an overcurrent condition abnormality such as a short circuit.
    By removing the overcurrent condition, these products automatically return to the initial
    condition and can be used repeatedly.
    2. Suitable for countermeasure to short circuit test in safety standard.
    3. Stable resistance after operation due to ceramic PTC.
    4. Similar size is possible due to the large capacity for electric power.
    5. Possible to use these products as current limiting resistors with ercurrent protection functions
    6. The SMD type's small size and light weight are helpful in miniaturizing the circuit.

    Applications


    1. Laptop computer
    2. AC power adapter
    3. Rechargeable battery pack
    4. LED
    5. Overcurrent protection for consumer electronic devices

    Structure and size


    NOSIZE(EIA)L1WH max.L2 and L3.
    TPM1P06031.60±0.150.80±0.150.80±0.150.40±0.20
    TPM2P08052.00±0.201.25±0.201.00 max.0.45±0.25
    TPM4P12103.20±0.302.50±0.251.80 max.0.50±0.20

    The following applies only to

    TPM2P150M100R and TPM2P220M100R

    TPM2P08052.00±0.201.25±0.201.450.45±0.25

    Electrical Characteristics


    0603 Series


    Part No.


    Curie temperature


    25℃

    Rated Resistance


    Non-Operating Current


    Tip current


    Max Voitage


    Max

    Current


    Operating temperature range

    @ +60@ +25@+25@ -10@ Vmax@V=0
    Tc ()R25 (Ω)IN (mA)IT (mA)Vmax (VDC )Imax (mA)TL~TU ()
    TPM1P330M100R

    100±10

    3325367185

    24

    900

    -10 ~ +60


    -40~ +125

    TPM1P470M100R4720296175630
    TPM1P600L100R6020296175500
    TPM1P800M100R80--2655--400
    TPM1P101M100R10015214555300
    TPM1P221M100R22010142935130
    TPM1P471M100R470710212560

    0805 Series



    Part No.


    Curie temperature


    25℃

    Rated Resistance


    Non-Operating Current


    Tip current



    Max Voitage



    Max

    Current


    Operating temperature range
    @ +85℃@ +25℃@+25℃@ -40℃@ Vmax@V=0
    Tc (℃)R25 (Ω)

    IN

    (mA)

    IT

    (mA)

    Vmax (VDC )Imax (mA)

    TL~TU

    (℃)

    TPM2P150M100R

    100±10

    154059116140

    20

    1600

    -10 ~ +60

    -40~ +125
    TPM2P220M100R223044911101100
    TPM2P221M100R2201014293524130

    1210 Series



    Part No.


    Curie temperature


    25℃

    Rated Resistance


    Non-Operating Current


    Tip current



    Max Voitage



    Max

    Current


    Operating temperature range
    @ +85℃@ +25℃@+25℃@ -40℃@ Vmax@V=0
    Tc (℃)R25 (Ω)

    IN

    (mA)

    IT

    (mA)

    Vmax (VDC )Imax (mA)

    TL~TU

    (℃)

    TPM4P270H110R110±1027409018026330500

    -40 ~ +85


    -40~ +125

    TPM4P550H120R120±1055346013019030400
    TPM4P121H120R120±1012023409013280300
    TPM4P401H090R90±104006154059265200
    TPM4P152S120R120±1015004122232400150

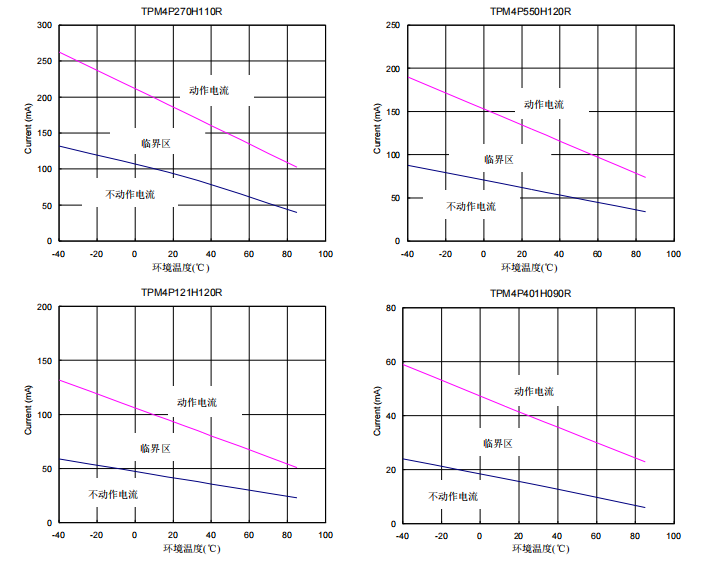

    Protection current range(0603Series)


    Protection current range(0805Series)


    Protection current range(1210Series)

    Typical Application Circuit


    Packaging


    Size(EIA)Quantity(Pcs/roll)
    06034,000
    08053,500
    12102,500
