PTC Thermistor MZ3-M221RME Positive Coefficient Thermistor PTC Temperature Sensor For Communication Equipment
PTC THERMISTOR
PTC is a positive temperature coefficient thermistor. It is a typical semiconductor resistance
with temperature sensitivity. When the temperature exceeds a certain temperature (Curie temperature), its resistance value increases with the increase of temperature.
Application
◆ Overvoltage, overcurrent and overload protection,Mainly used for
power transformers, various chargers, various instruments and other
over current, overheating protection occasions
◆ Motor, compressor startup assistance
◆ Motor overheating protection, electric iron constant temperature
maintenance, filament preheating delay start, LED constant current
compensation and other functions
Features
◆ High ageing cofficient
◆ Small size, Superior withstanding voltage
◆ Fast reaction time
◆ High reliability,Long operating life
When PTC is used as over-current protection element, the specification of the maximum non-action current and the maximum working voltage should be selected, at the same time, we should also consider the element size, rated zero-power resistance, the use of temperature range and other factors. Usually, the maximum current of PTC is 1.2-1.5 times of the maximum current when the circuit is working normally The voltage that may be applied to the PTC under normal or abnormal conditions should not be greater than its maximum operating voltage.
| Part No. | Switching Temperature ( ℃ ) | R25 Rated Resistance ( Ω ) | Breakdown Voltage (V) | Diameter*Thicknes (max) |
| *MZ3-M101RME | 80 | 100 | 500 | 6.5*5.0 |
| *MZ3-M151RME | 80 | 150 | 500 | 6.5*5.0 |
| MZ3-M201RME | 80 | 200 | 600 | 6.5*5.0 |
| *MZ3-M221RME | 80 | 220 | 600 | 6.5*5.0 |
| MZ3-M301RME | 80 | 300 | 600 | 6.5*5.0 |
| *MZ3-M331RME | 80 | 330 | 600 | 6.5*5.0 |
| *MZ3-M471RME | 80 | 470 | 600 | 6.5*5.0 |
| *MZ3-M501RME | 80 | 500 | 600 | 6.5*5.0 |
| *MZ3-M601RME | 80 | 600 | 600 | 6.5*5.0 |
| *MZ3-M681RME | 80 | 680 | 600 | 6.5*5.0 |
| MZ3-M801RME | 80 | 800 | 600 | 6.5*5.0 |
| *MZ3-M102RME | 80 | 1000 | 600 | 6.5*5.0 |
| *MZ3-M101RMG | 80 | 100 | 500 | 8.5*5.0 |
| *MZ3-M151RMG | 80 | 150 | 600 | 8.5*5.0 |
| MZ3-M201RMG | 80 | 200 | 600 | 8.5*5.0 |
| *MZ3-M221RMG | 80 | 220 | 600 | 8.5*5.0 |
| MZ3-M301RMG | 80 | 300 | 600 | 8.5*5.0 |
| *MZ3-M331RMG | 80 | 330 | 600 | 8.5*5.0 |
| *MZ3-M471RMG | 80 | 470 | 600 | 8.5*5.0 |
| *MZ3-M501RMG | 80 | 500 | 600 | 8.5*5.0 |
| *MZ3-M601RMG | 80 | 600 | 600 | 8.5*5.0 |
| *MZ3-M681RMG | 80 | 680 | 600 | 8.5*5.0 |
| MZ3-M801RMG | 80 | 800 | 750 | 8.5*5.0 |
| *MZ3-M102RMG | 80 | 1000 | 750 | 8.5*5.0 |
| *MZ3-N101RME | 100 | 100 | 420 | 6.5*5.0 |
| MZ3-N151RME | 100 | 150 | 500 | 6.5*5.0 |
| MZ3-N201RME | 100 | 200 | 600 | 6.5*5.0 |
| *MZ3-N221RME | 100 | 220 | 600 | 6.5*5.0 |
| MZ3-N301RME | 100 | 300 | 600 | 6.5*5.0 |
| *MZ3-N331RME | 100 | 330 | 600 | 6.5*5.0 |
| *MZ3-N471RME | 100 | 470 | 600 | 6.5*5.0 |
| *MZ3-N501RME | 100 | 500 | 600 | 6.5*5.0 |
| *MZ3-N601RME | 100 | 600 | 600 | 6.5*5.0 |
| *MZ3-N681RME | 100 | 680 | 600 | 6.5*5.0 |
| MZ3-N801RME | 100 | 800 | 600 | 6.5*5.0 |
| *MZ3-N102RME | 100 | 1000 | 600 | 6.5*5.0 |
| *MZ3-N101RMG | 100 | 100 | 600 | 8.5*5.0 |
| Part No. | Switching Temperature ( ℃ ) | R25 Rated Resistance ( Ω ) | Breakdown Voltage (V) | Diameter*Thicknes (max) |
| *MZ3-N151RMG | 100 | 150 | 600 | 8.5*5.0 |
| MZ3-N201RMG | 100 | 200 | 600 | 8.5*5.0 |
| *MZ3-N221RMG | 100 | 220 | 600 | 8.5*5.0 |
| MZ3-N301RMG | 100 | 300 | 600 | 8.5*5.0 |
| *MZ3-N331RMG | 100 | 330 | 600 | 8.5*5.0 |
| *MZ3-N471RMG | 100 | 470 | 600 | 8.5*5.0 |
| *MZ3-N501RMG | 100 | 500 | 600 | 8.5*5.0 |
| *MZ3-N601RMG | 100 | 600 | 600 | 8.5*5.0 |
| *MZ3-N681RMG | 100 | 680 | 600 | 8.5*5.0 |
| MZ3-N801RMG | 100 | 800 | 600 | 8.5*5.0 |
| *MZ3-N102RMG | 100 | 1000 | 750 | 8.5*5.0 |
| *MZ3-P101RME | 120 | 100 | 420 | 6.5*5.0 |
| MZ3-P151RME | 120 | 150 | 500 | 6.5*5.0 |
| MZ3-P201RME | 120 | 200 | 600 | 6.5*5.0 |
| *MZ3-P221RME | 120 | 220 | 600 | 6.5*5.0 |
| MZ3-P301RME | 120 | 300 | 600 | 6.5*5.0 |
| *MZ3-P331RME | 120 | 330 | 600 | 6.5*5.0 |
| *MZ3-P471RME | 120 | 470 | 600 | 6.5*5.0 |
| *MZ3-P501RME | 120 | 500 | 600 | 6.5*5.0 |
| *MZ3-P601RME | 120 | 600 | 600 | 6.5*5.0 |
| *MZ3-P681RME | 120 | 680 | 600 | 6.5*5.0 |
| MZ3-P801RME | 120 | 800 | 600 | 6.5*5.0 |
| *MZ3-P102RME | 120 | 1000 | 600 | 6.5*5.0 |
| *MZ3-P101RMG | 120 | 100 | 420 | 8.5*5.0 |
| *MZ3-P151RMG | 120 | 150 | 500 | 8.5*5.0 |
| MZ3-P201RMG | 120 | 200 | 600 | 8.5*5.0 |
| *MZ3-P221RMG | 120 | 220 | 600 | 8.5*5.0 |
| MZ3-P301RMG | 120 | 300 | 600 | 8.5*5.0 |
| *MZ3-P331RMG | 120 | 330 | 600 | 8.5*5.0 |
| *MZ3-P471RMG | 120 | 470 | 600 | 8.5*5.0 |
| *MZ3-P501RMG | 120 | 500 | 600 | 8.5*5.0 |
| *MZ3-P601RMG | 120 | 600 | 600 | 8.5*5.0 |
| *MZ3-P681RMG | 120 | 680 | 600 | 8.5*5.0 |
| MZ3-P801RMG | 120 | 800 | 600 | 8.5*5.0 |
| *MZ3-P102RMG | 120 | 1000 | 750 | 8.5*5.0 |
| *MZ3-P202RYG | 120 | 2000 | 900 | 8.5*5.0 |
| *MZ3-M221RMH | 80 | 220 | 600 | 9.5*5.0 |
| *MZ3-M251RMH | 80 | 250 | 600 | 9.5*5.0 |
| Part No. | Switching Temperature ( ℃ ) | R25 Rated Resistance ( Ω ) | Breakdown Voltage (V) | Diameter*Thicknes (max) | |
| *MZ3-M451RMH | 80 | 450 | 600 | 9.5*5.0 | |
| *MZ3-M351RMI | 80 | 350 | 600 | 10.5*5.0 | |
① Operating temperature range:-10℃~-125℃; ② Products can be designed according to special requirements of customers； ③ Models with * have passed UL certification； | |||||

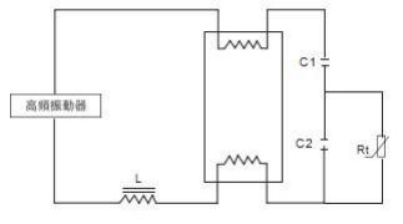

| ④ Application circuit: |
| ||||
|
|
