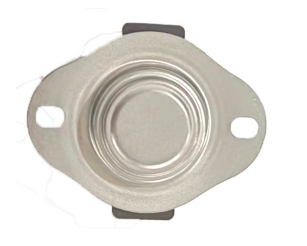

KSD302 Series 45-240℃ Jump Thermostat Thermal Safety Cutoff For Heating And Ventilating Equipment

Description:

KSD302 series thermostat is a bimetallic thermostat with shell, which belongs to the category of temperature relay. By using the principle of the bimetal disc producing instantaneous jump under the action of temperature, the circuit can be disconnected or connected through the action of mechanism. Its working temperature is fixed, no need to adjust, reliable and crisp action, small arc, long service life, less radio interference.

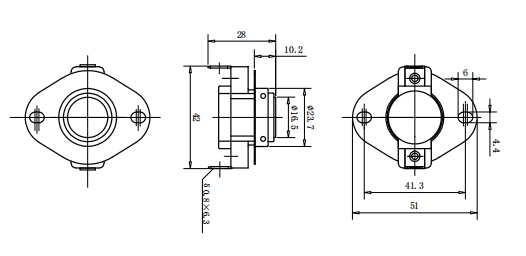

Dimension (Unit mm):Features:

High reliability,

long life,

stable performance,

high accuracy,

small radio interference,

flexible installation,

not arcing.

Main Technical Parameters:

Temperature range: 45 ° C--240 ° C, according to customer requirements can provide any temperature in its range.

Temperature Allowable Tolerance(%): ± 5 ° C, ± 7 ° C, according to customer requirements can provide its range of arbitrary temperature.

Contact resistance:≦50mΩ

Insulation resistance:≧100MΩ

Electrical specifications:AC240V,25A-45A

Life Times:100000

Heating and ventilating equipment,

Electric water heaters,

Vending machine,

Air compressors,

Electric furnaces,

Dryers, etc.
