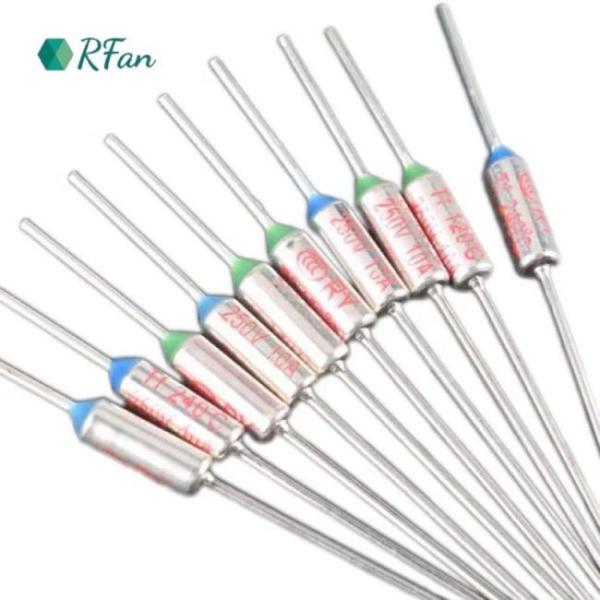

    142°C Aupo Thermal Fuse Thermal Cut Off Fuse 250V 10A For Curling Iron

    Ask Lasest Price
    Brand Name : RFan
    Model Number : STS-10A
    Certification : UL.TUV.ROHS
    Price : 0.03-0.5
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1KK/M
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    142°C Aupo Thermal Fuse Thermal Cut Off Fuse 250V 10A For Curling Iron

    250V 10A 142°C Thermal Fuse Aupo Thermal Fuse Thermal Cut Off Fuse For Curling Iron
    STS-10A Series
    Features
    With strong compact structures,high
    Insulation resistance and quickly heated
    advantages can be quickly action.
    When the products work under abnormal or
    can't be reset,can soon cut off the power.
    Applications
    Widely used in follow various field such as transformer,
    exhaust fan,fan and small power motor charger,adopter,
    secondary battery,household combined with gas water
    heater lightings and various heater equipment
    Dimension (unit:mm)
    Electrical characteristics at 25°C
    No.Part
    number
    TfOperating
    temperature
    ThTmIrlpVoltageApprovals
    (C)(℃)(℃)(℃)(A)(A)(V)ULCCCTUVPSEVDECB
    1STS073C7371±24313010A150250Vac00OOO
    2STS077C7774±24713010A150250VacO0O0
    3STS113C113108±38316010A150250Vac00OOO
    4STS121C121117±39116010A150250VacO0OO0
    5STS133C133129±310316010A150250VacOOOOO
    6STS142C142138±311217010A150250VacOOOOO
    7STS157C157152±312717010A150250VacOOOOO
    8STS167C167164±313719010A150250VacOOOOO
    9STS172C172169±314219010A150250VacOOOOO
    10STS184C184180±315421010A150250VacOOOOO
    11STS216C216213±318626010A150250VacOOOO0

    ●= Approved ○=Going on
    Tf Functioning temperature,the standard tolerance:+0,-5℃
    Th holding temperature:Maximum durative exposed exposed temperature.
    Tm maximum temperature:The highest temperature at which the thermal link wont change the condition
