STT-15A 250V Big Current Thermal Fuse Aupo Thermal Fuse Thermal Cut Off Fuse For Water Heater

Widely used in follow various field such as transformer,

exhaust fan,fan and small power motor charger,adopter,

secondary battery,household combined with gas water

heater lightings and various heater equipment.

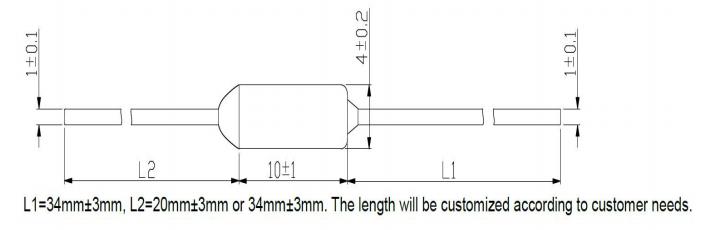

Dimension (unit:mm)

Electrical characteristics at 25℃

No.

Part number

Tf

Operating temperature

Th

Tm

Ir

lp

Voltage

Approvals

(℃)

(℃)

(℃)

(℃)

(A)

(A)

(V)

UL

CCC

TUV

PSE

VDE

CB

1

STT073C

73

71±2

43

130

15A

150

250Vac

O

O

●

O

O

O

2

STT077C

77

74±2

47

130

15A

150

250Vac

O

0

●

O

0

3

STT113C

113

108+3

83

160

15A

150

250Vac

O

O

●

O

0

O

4

STT121C

121

117±3

91

160

15A

150

250Vac

O

O

●

O

O

O

5

STT133C

133

129+3

103

160

15A

150

250Vac

O

O

●

O

0

O

6

STT142C

142

138±3

112

170

15A

150

250Vac

O

0

●

O

0

0

7

STT157C

157

152±3

127

170

15A

150

250Vac

O

O

●

O

O

O

8

STT167CC

167

164+3

137

190

15A

150

250Vac

O

O

●

O

0

O

9

STT172C

172

169±3

142

190

15A

150

250Vac

O

O

●

O

0

O

10

STT184C

184

180±3

154

210

15A

150

250Vac

O

O

●

O

0

O

11

STT216C

216

213±3

186

260

15A

150

250Vac

O

O

●

O

0

O

●= Approved ○=Going on

Tf Functioning temperature,the standard tolerance:+0,-5℃

Th holding temperature:Maximum durative exposed exposed temperature.

Tm maximum temperature:The highest temperature at which the thermal link wont change the condition
